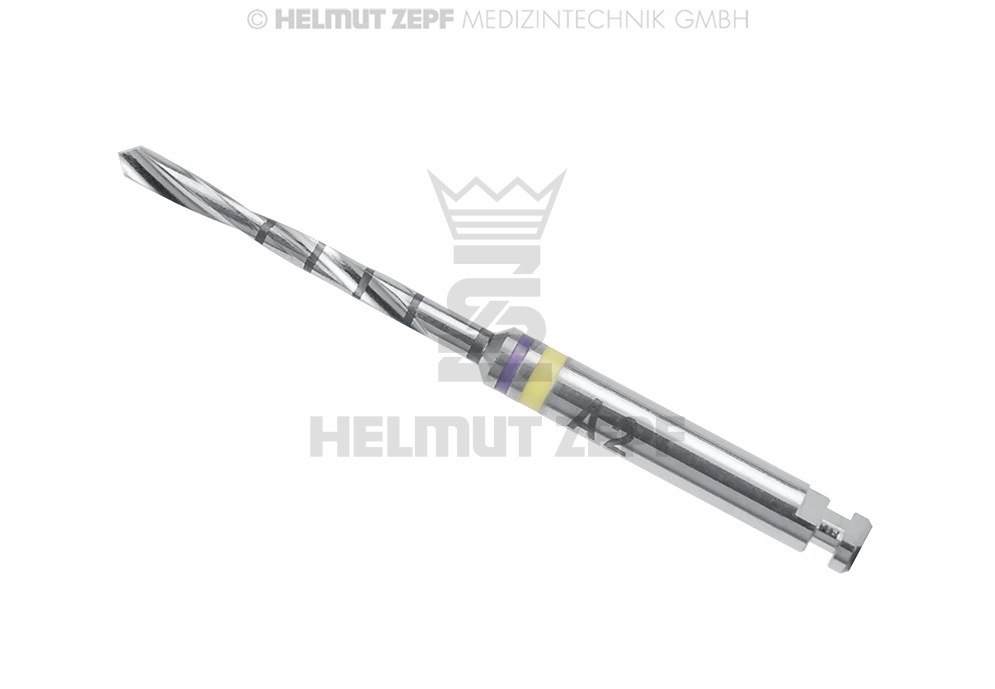

Surgical drill for bone drilling, diameter 1.3mm, depth 12mm, figure A2001 - Helmut Zepf (08.523.13) - Delynov

What is the Helmut Zepf 08.523.13 surgical bur?

The Helmut Zepf surgical bur, reference 08.523.13, is a precision rotary instrument designed specifically for bone drilling in clinical settings. This device, identified under Figure A2001, is developed by Helmut Zepf Medizintechnik GmbH to meet the requirements of oral surgery. Its structure is optimized for controlled removal of bone tissue, offering a cutting geometry adapted to invasive procedures. As a consumable category instrument, it constitutes a central element of the technical platform for practitioners performing pilot drilling or implant site preparations requiring high dimensional rigor.

What are the clinical indications for this drilling instrument?

This Helmut Zepf instrument is indicated for all oral surgery procedures requiring calibrated bone perforation. Dentists and implantologists primarily use it during the initial phase of implant site preparation to mark the drilling axis. It is also relevant in the context of complex periodontal surgeries or osteosyntheses where the creation of a guide hole is necessary for the insertion of screws or pivots. Its design allows for use on different bone densities encountered in the maxillae, ensuring stable progression during the surgical act.

What are the technical characteristics of the 08.523.13 bur?

The Helmut Zepf surgical bur features precise technical specifications to ensure the reproducibility of surgical movements. It has a cutting diameter of 1.3 mm, which classifies it among fine drilling instruments. Its working depth is set at 12 mm, allowing it to reach deep bone layers while maintaining optimal visual and tactile control. Identified by reference code 08.523.13 and Figure A2001, this bur is designed to be mounted on standard surgical contra-angles. The manufacturing quality of Helmut Zepf Medizintechnik GmbH ensures rigorous concentricity to limit vibrations during rotation.

What are the contraindications for the use of this bone bur?

Contraindications for the use of the Helmut Zepf bur are mainly related to the patient's clinical conditions and the technical limits of the instrument. Its use is prohibited if there is insufficient bone volume to support a 12 mm deep drilling without the risk of damaging adjacent anatomical structures, such as the inferior alveolar nerve or the maxillary sinus. Additionally, the use of this rotary instrument may be contraindicated in patients with severe systemic bone pathologies or a history of local radiotherapy. Reference should systematically be made to current clinical protocols and the technical manual provided by the manufacturer.

What are the maintenance and durability precautions?

As a rotary instrument intended for bone cutting, maintaining its sharpness is crucial. Although classified in the consumable category, any potential reuse must follow a strict sterilization protocol in accordance with the instructions from Helmut Zepf Medizintechnik GmbH. The accumulation of bone debris in the flutes can reduce cutting efficiency and increase thermal heating of the bone, which is detrimental to healing. It is recommended to check the integrity of the shank and the working part before each intervention. Abundant irrigation is imperative during use to evacuate chips and limit the temperature rise of the surrounding bone tissue.

Who is the manufacturer and what are the quality guarantees?

The device is manufactured by Helmut Zepf Medizintechnik GmbH, a recognized manufacturer in the field of surgical and dental instrumentation. The Helmut Zepf brand is synonymous with precision and reliability for healthcare professionals worldwide. Although specific details on the regulatory class or CE marking are not explicitly listed in this technical sheet, this manufacturer's products are designed according to high industrial standards to meet the needs of modern oral surgery. Each instrument, such as reference 08.523.13, benefits from German engineering expertise in rotary medical devices.

State of the art

Surgical medical consumables play a decisive role in operative safety.
