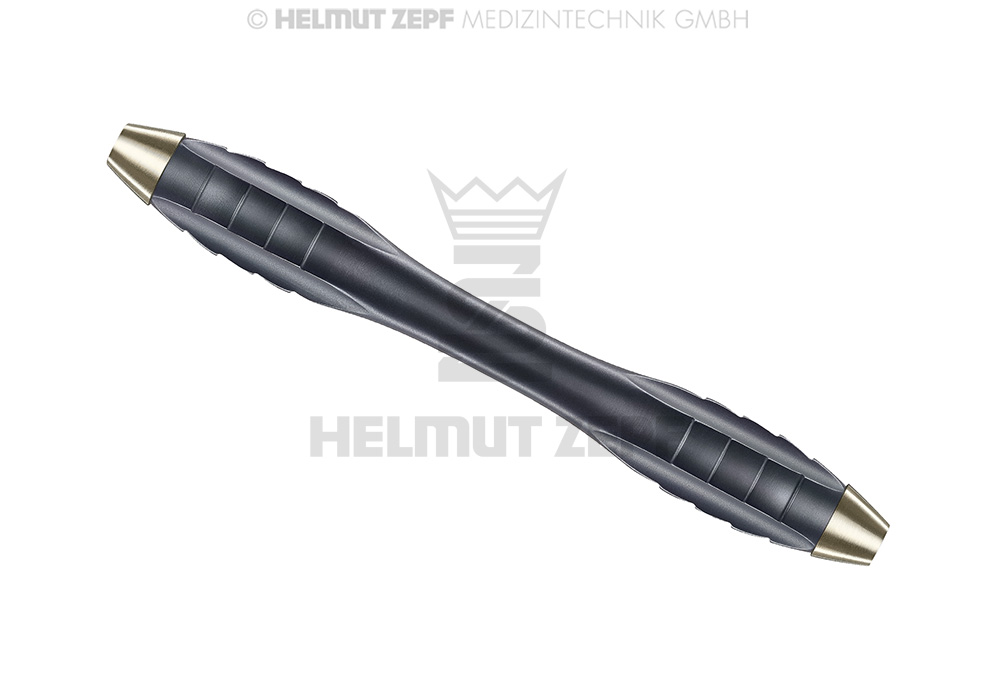

Z-Shape Relax double-ended surgical handle, M4 x 0.5 mm thread - Helmut Zepf (26.010.05OX) - Delynov

What is the Helmut Zepf Z-Shape Relax surgical handle?

The Z-Shape Relax double-ended surgical handle, referenced under code 26.010.05OX, is a high-end instrumentation support designed by Helmut Zepf Medizintechnik GmbH. This device is distinguished by its double-ended configuration, allowing two different working inserts to be attached simultaneously. Its ergonomic design, from the Relax range, aims to offer optimal user comfort for the practitioner during prolonged clinical procedures. This ergonomic instrument holder handle is a central element of modular instrumentation, facilitating the transition between different surgical phases without changing the handle.

What are the clinical indications for this double-ended handle?

The Helmut Zepf dental double-ended handle is indicated for all oral surgery, periodontology, and implantology procedures requiring the use of interchangeable instruments. Its use is particularly relevant during site preparation, deep scaling, or micro-surgery phases where speed of execution and precision of movement are crucial. By allowing the mounting of two distinct active tips, this double surgical handle reduces the number of instruments on the sterile tray and optimizes the surgical workflow by allowing the practitioner to switch instantly from one function to another.

What are the technical characteristics of the thread and the structure?

Technically, this Helmut Zepf handle (26.010.05OX) is equipped with a standardized M4 x 0.5 mm thread at each end. This specification guarantees precise compatibility with a wide range of inserts and working tips respecting these metric dimensions. The Z-Shape Relax structure is designed to offer a balanced weight distribution, improving tactile sensitivity during delicate movements. The surface finish is designed to withstand repeated autoclave sterilization cycles while maintaining a secure grip even in wet environments, an essential characteristic for an m4 instrument holder handle used in the operating room.

What are the contraindications for the use of this device?

The contraindications related to the use of the Z-Shape Relax handle are mainly technical and environmental. It must not be used with inserts whose thread is incompatible with the M4 x 0.5 mm standard, at the risk of irreversibly damaging the screw thread of the handle or the insert. Clinically, use is contraindicated if the device shows signs of wear, corrosion, or deformation following intensive use or impact, as this could compromise the secure fixation of the active ends or the precision of the surgical gesture.

What are the maintenance and durability precautions?

Like any precision surgical instrument, this Helmut Zepf handle requires a rigorous decontamination and sterilization protocol in accordance with the manufacturer's guidelines. It is imperative to carefully clean the M4 internal threads after each use to remove organic residues that could lodge in the screw thread. Although designed for great longevity, regular verification of the integrity of the threads and the absence of micro-cracks is recommended. The use of non-corrosive cleaning solutions is essential to preserve the surface appearance and mechanical properties of the Z-Shape Relax handle.

Who is the manufacturer and what standards are met?

The 26.010.05OX surgical handle is manufactured by Helmut Zepf Medizintechnik GmbH, a manufacturer recognized for its expertise in high-precision dental and surgical instrumentation. As a medical device intended for surgery, this product is designed to meet the strict quality requirements of the industry. For any specific information regarding the regulatory class, CE marking, or current ISO certifications, it is advisable to refer to the technical documentation provided by Helmut Zepf or to consult the product labeling, as these data may vary according to the manufacturer's regulatory updates.

State of the art

Specialized surgical instrumentation is evolving towards ergonomic designs.
