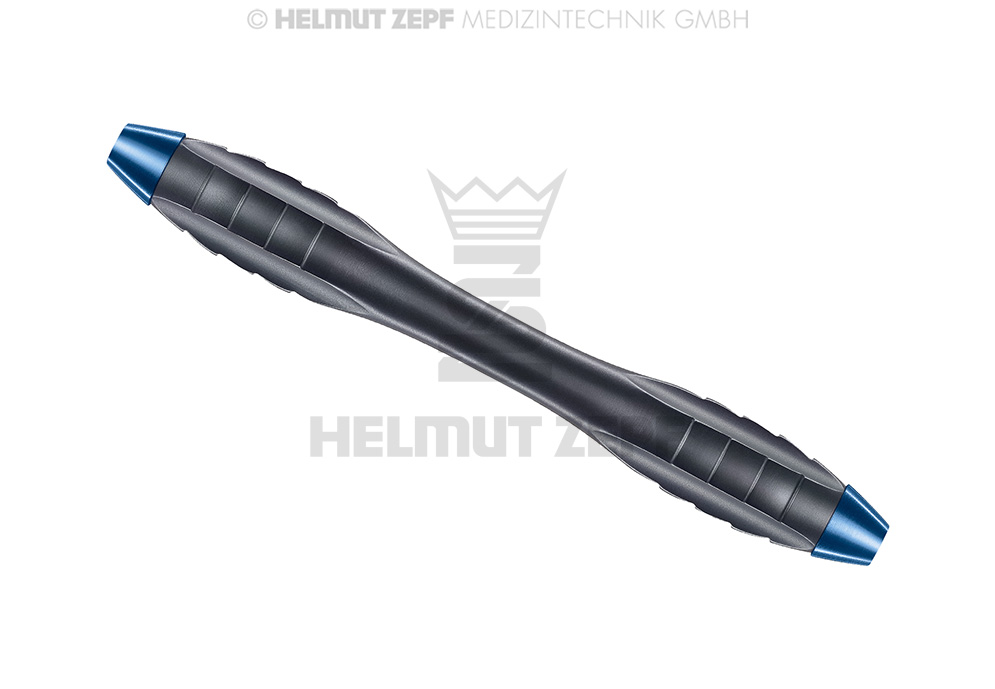

Double-ended Z-shaped surgical handle, M4x0.5 thread - Helmut Zepf (26.010.07OX) - Delynov

What is the Helmut Zepf 26.010.07OX surgical handle?

The Z-shaped double-ended surgical handle (reference 26.010.07OX) is a tool-holder instrument developed by Helmut Zepf Medizintechnik GmbH. This device is distinguished by its bifocal structure allowing the mounting of two inserts simultaneously. Its specific Z-shaped design is engineered to offer optimal angulation during manipulations in the oral cavity. This bit-holder handle is a central component of modular instrumentation, facilitating the transition between different surgical phases without changing the complete instrument. Helmut Zepf's manufacturing quality ensures a stable interface with compatible tools, meeting the requirements of modern oral surgery.

What are the clinical indications for this double handle?

This dental double handle is indicated for all interventions requiring the successive or alternating use of two distinct working tips. In implant surgery, it allows for the configuration of a personalized tool for site preparation or soft tissue manipulation. In periodontology, it serves as an insert-holder handle for specific scaling or root planing instruments. Its Z-shape is particularly useful for bypassing anatomical obstacles and improving visibility in posterior sectors. It integrates perfectly into bone surgery and reconstruction protocols where versatility and speed of execution are paramount for clinical success.

What are the technical characteristics of the 26.010.07OX handle?

The Helmut Zepf handle features precise technical characteristics to guarantee constant performance. It is equipped with an M4x0.5 thread at each end, a standard allowing the secure fixation of a wide range of surgical inserts. Its Z-shaped geometry is not only aesthetic but functional, offering a lever and an angle of attack adapted to the constraints of the oral space. Reference 26.010.07OX designates a robust instrument, designed to withstand repeated cleaning and sterilization cycles in hospital or office settings. This tool-holder handle ensures efficient transmission of the force applied by the practitioner to the active end of the chosen insert.

What are the contraindications for the use of this instrument?

The contraindications for the use of this Helmut Zepf surgical handle are mainly related to non-compliance with technical compatibilities. The use of inserts that do not have an M4x0.5 thread is strictly prohibited, as this could damage the screw thread or lead to a decoupling of the tool during the intervention. Clinically, use is contraindicated if the instrument shows visible signs of wear, corrosion, or thread deformation. It is imperative to check the integrity of the device before each use. Finally, as with any reusable instrument, non-compliant sterilization constitutes a major contraindication to its use on a patient.

What are the maintenance precautions for this bit-holder handle?

As a non-resorbable and reusable instrument, the maintenance of the Helmut Zepf bit-holder handle requires special attention, particularly regarding the M4x0.5 threads. After each intervention, it is crucial to remove the inserts to separately clean the threaded areas where organic debris can accumulate. Cleaning must be carried out with appropriate detergent and disinfectant solutions, followed by thorough rinsing. Autoclave sterilization must follow the parameters recommended by the manufacturer Helmut Zepf Medizintechnik GmbH. Complete drying is essential to prevent any premature oxidation, thus guaranteeing the longevity of the device and the safety of subsequent surgical procedures.

Who is the manufacturer and what are the quality guarantees?

The 26.010.07OX surgical handle is manufactured by Helmut Zepf Medizintechnik GmbH, a recognized manufacturer in the field of high-precision surgical instrumentation. Based in Germany, this company applies rigorous manufacturing processes to ensure the compliance of its products with medical sector requirements. Although regulatory class specifications and CE marking are not detailed here, Helmut Zepf products are generally designed according to international quality standards. Practitioners can refer to the instructions for use and technical documents provided by the manufacturer to obtain detailed information on certifications and maintenance protocols specific to this Z-shaped handle.

State of the art

Specialized surgical instrumentation is evolving towards ergonomic designs.
