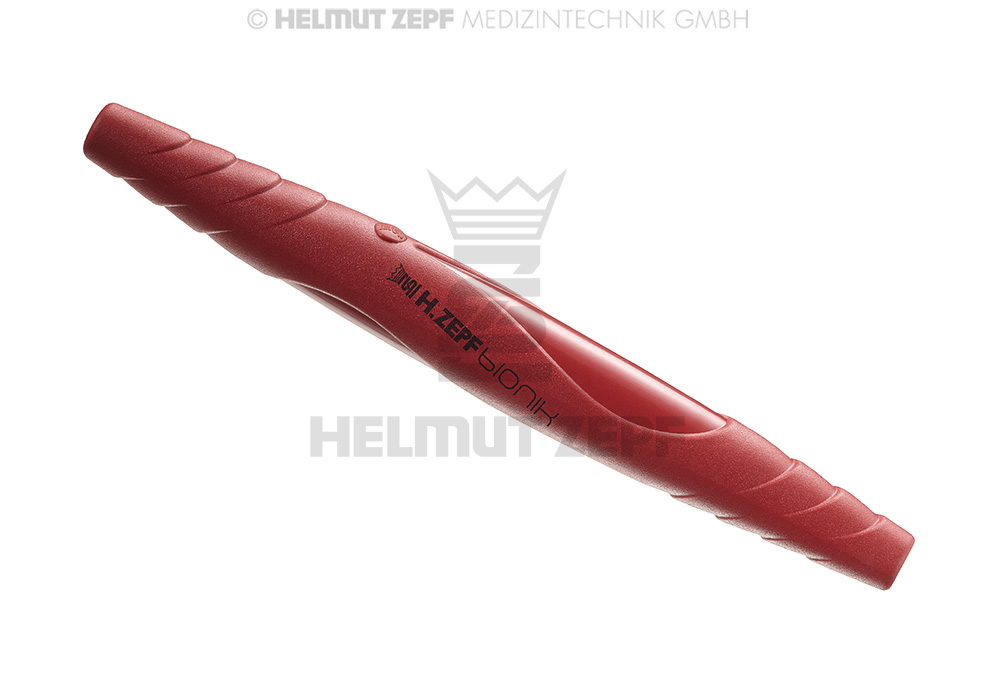

Universal handle for interchangeable surgical inserts, PEEK, M4x0.5 compatible - Helmut Zepf (26.193.03) - Delynov

What is the Helmut Zepf universal handle (26.193.03)?

The Helmut Zepf universal handle, referenced under code 26.193.03, is a surgical instrument designed to receive interchangeable inserts. Its main structure is manufactured from PEEK (Polyetheretherketone), a high-tech polymer recognized for its mechanical resistance and thermal stability. This interchangeable m4 handle is distinguished by its ergonomics adapted to the requirements of oral surgery. It allows practitioners to modulate their instrumentation according to specific clinical needs by simply changing the active tip, while maintaining a stable and lightweight gripping body.

What are the clinical indications for this dental insert-holder handle?

This handle is indicated for all oral, periodontal, and implant surgery procedures requiring the use of specific inserts compatible with the M4x0.5 thread. As a dental surgery peek handle, it serves as a support for micro-surgery instruments, periosteal elevators, or measuring tips, depending on the selected insert. Its use is particularly relevant during long-duration surgeries where gripping comfort and instrument weight reduction are sought by the implantologist or dental surgeon to maintain optimal precision of the operative gesture.

What are the technical characteristics of this device?

The Helmut Zepf handle features precise technical specifications to guarantee maximum reliability. It integrates an M4x0.5 type threaded connection, ensuring strict compatibility with inserts of the same standard. The choice of PEEK as a composition material offers excellent resistance to repeated sterilization cycles while avoiding metallic reflections under scialytic lighting, thus improving the visibility of the operating field. Its monobloc design facilitates cleaning and decontamination, meeting the rigorous hygiene standards of dental offices and operating theaters.

What are the contraindications for the use of this PEEK handle?

The contraindications related to the use of this Helmut Zepf universal handle mainly concern non-compliance with technical compatibility protocols. It must not be used with inserts whose threading differs from the M4x0.5 standard, at the risk of damaging the screw thread and compromising the fixation of the instrument. Furthermore, although PEEK is a biocompatible and resistant material, the use of the handle is contraindicated if the device shows signs of structural wear, cracks, or thread deformation that could lead to a risk of the insert becoming detached during the surgical act.

What are the maintenance and durability precautions?

As a non-resorbable instrument intended for repeated use after reprocessing, this PEEK handle requires a strict sterilization protocol in accordance with the instructions from the manufacturer Helmut Zepf Medizintechnik GmbH. It is necessary to systematically check for the absence of biological debris inside the M4 thread before each autoclave cycle. Although PEEK is extremely robust, it is recommended to avoid abrasive cleaning products that could alter the surface of the handle. A regular visual inspection of the thread is necessary to guarantee the secure locking of the interchangeable inserts during interventions.

Who is the manufacturer and what standards are respected?

The device is manufactured by Helmut Zepf Medizintechnik GmbH, a recognized manufacturer in the field of high-precision surgical instrumentation. Production follows the rigorous quality standards of the German company to guarantee the safety of medical devices. Concerning specific certifications such as the regulatory class or CE marking, this information must be verified directly on the product labeling or in the technical documentation provided by Helmut Zepf. The practitioner is invited to systematically refer to the instructions for use to confirm the compliance of the device with the regulatory requirements in force in their region.

State of the art

Specialized surgical instrumentation is evolving towards ergonomic designs.
