Double-ended surgery handle, Z-shape, relaxed, M4x0.5 - Helmut Zepf (26.010.10OX) - Delynov

What is the Helmut Zepf double-ended surgery handle?

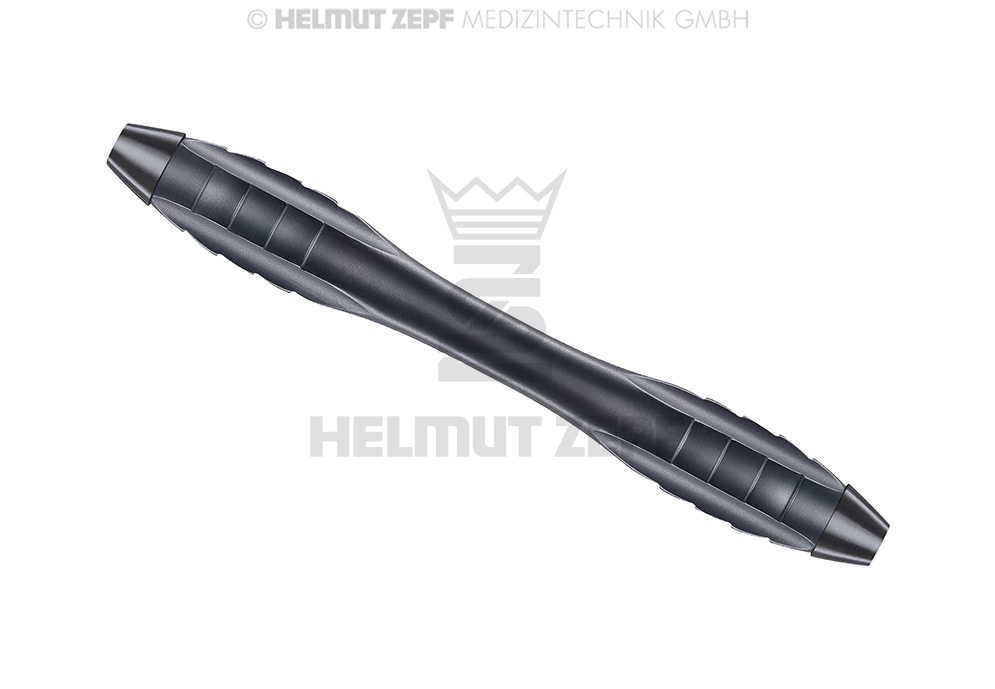

The double-ended surgery handle (reference 26.010.10OX) is a specialized instrument manufactured by Helmut Zepf Medizintechnik GmbH. This device is distinguished by its 'relaxed' Z-shaped structure, designed to optimize grip and access to complex surgical sites. As a dental insert holder handle, it allows for the attachment of working instruments at each end, thus offering a bifocal solution for the practitioner. Its design meets the requirements of modern oral surgery by allowing rapid alternation between two tips without changing the main instrument.

What are the clinical indications for this dental insert holder handle?

This surgical tip holder handle is primarily indicated for oral surgery, implantology, and periodontology procedures. Thanks to its double-ended configuration, it is used to support various micro-surgery or surgical scaling inserts compatible with its thread. Its Z-shape is particularly useful for navigating around anatomical structures without obstructing the surgeon's visual field. It is employed during the preparation phases of the implant site, debridement, or soft tissue manipulation requiring precise and interchangeable instrumentation.

What are the technical characteristics of the 26.010.10OX handle?

The Helmut Zepf handle features rigorous technical specifications to guarantee perfect compatibility with the brand's accessories. It is equipped with a standardized M4x0.5 thread, ensuring stable and secure fixation of the inserts. Its relaxed Z-geometry is designed to reduce manual fatigue during prolonged interventions. As an M4 dental handle, it allows for efficient transmission of the forces exerted by the practitioner to the insert. The surface finish is designed to withstand repeated cleaning and sterilization cycles in hospital environments or dental practices.

What are the contraindications for the use of this instrument?

The contraindications for the use of this surgery handle are related to accessory compatibility and hygiene protocols. It must not be used with inserts whose thread does not exactly match the M4x0.5 standard, at the risk of damaging the screw thread or causing loosening during the procedure. Furthermore, the use of the instrument is prohibited if it shows visible signs of wear, corrosion, or deformation of its Z-structure. As with any surgical instrument, a known hypersensitivity to the metallic components of the alloy constitutes a relative contraindication to be validated according to the patient file.

What are the maintenance precautions for this double-ended handle?

As a non-resorbable instrument intended for repeated use, this Helmut Zepf handle requires a strict decontamination and sterilization protocol after each use. The M4x0.5 threads should be cleaned carefully to eliminate any organic residue that could compromise the fixation of the inserts or sterility. The practitioner must check the integrity of the Z-shape before each intervention. It is recommended to follow the specific instructions from the manufacturer Helmut Zepf Medizintechnik GmbH regarding compatible cleaning agents to avoid any premature alteration of the material.

Who is the manufacturer and what standards are respected?

This device is manufactured by Helmut Zepf Medizintechnik GmbH, a recognized manufacturer in the field of high-precision dental and surgical instrumentation. Although the specific regulatory class and CE marking are not detailed in this technical document, the product is designed according to the brand's own German industrial quality standards. Professionals should refer to the original labeling and the instructions for use provided with reference 26.010.10OX to confirm the certifications in force and the safety instructions compliant with local medical device regulations.

State of the art

Specialized surgical instrumentation is evolving towards ergonomic designs.
