Surgical Chisel-Chisel Vienna Model, Straight, 3 mm - Helmut Zepf (41.540.03WM) - Delynov

What is the Helmut Zepf Vienna model chisel-chisel?

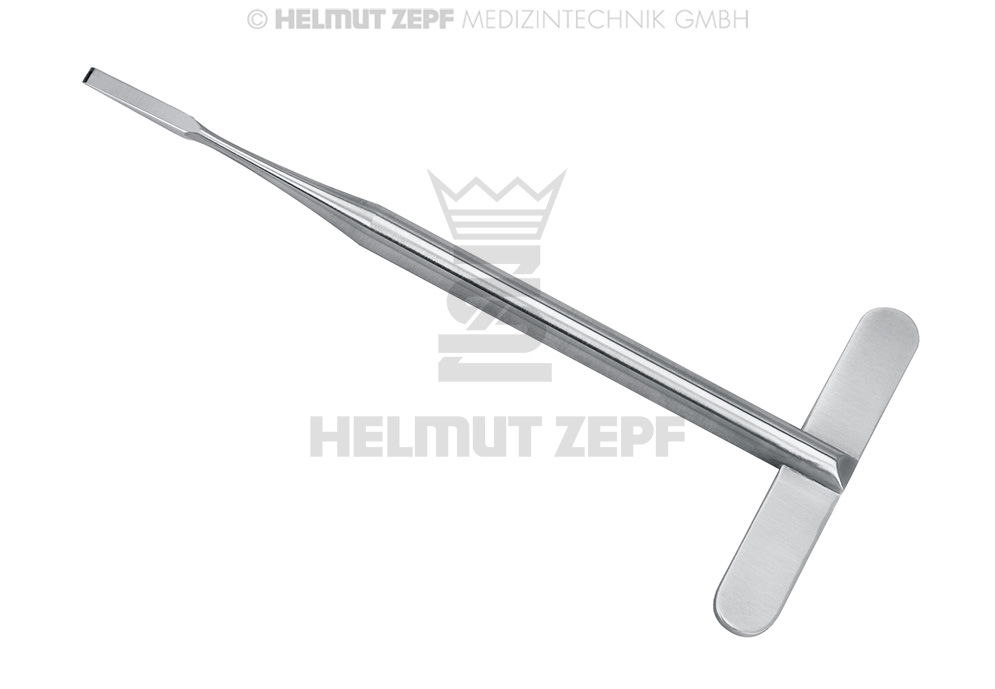

The Vienna model chisel-chisel, referenced under code 41.540.03WM, is a manual instrument designed by Helmut Zepf Medizintechnik GmbH for the manipulation of hard tissues. This device is characterized by a straight shape and a working part with a width of 3 mm. It is specifically structured to meet the requirements of oral surgery procedures where modification of bone volumes is necessary. Its monobloc construction ensures direct transmission of force when using a surgical mallet, thus allowing for a clean and controlled cut of cortical structures without compromising the integrity of the instrument.

What are the clinical indications for this bone surgery chisel?

This bone surgery chisel finds its primary indications in pre-implant surgery protocols and surgical periodontology. It is used by practitioners for performing corrective osteotomies, removing irritative spines after multiple extractions, or regularizing irregular alveolar ridges. In implantology, it can be used for recipient site preparation or harvesting autogenous bone chips. Its 3 mm width makes it particularly suitable for restricted access areas or delicate finishes where a wider instrument would lack selectivity. It also allows for the separation of bone segments during split crest or fenestration techniques.

What are the technical characteristics of this device?

The Vienna model 41.540.03WM features precise technical specifications to optimize the surgical gesture. It has a straight configuration, facilitating direct access to the anterior and premolar sectors. The blade width is 3 mm, offering a compromise between robustness and cutting precision. Manufactured by Helmut Zepf, this instrument benefits from a surface finish that limits reflections under operating lights. The handle is designed to provide a stable grip, essential during the application of impact forces. The geometry of the active tip is sharpened to effectively penetrate mineralized tissues while maintaining structural resistance against repeated mechanical stresses.

What are the contraindications for the use of this instrument?

The contraindications for the use of the Vienna model chisel-chisel are mainly related to the patient's clinical state and the nature of the surgical site. Its use is prohibited on bone structures presenting extreme pathological fragility or insufficient density to support mechanical impact. It must not be used in anatomical areas at immediate risk of major nerve or vascular injury without adequate protection. Furthermore, the use of this instrument is discouraged if the practitioner does not have a suitable mallet or if visual access to the surgical field is insufficient to guarantee the safety of the procedure. Any known allergy to the metals constituting standard surgical instrumentation also constitutes a limit to its use.

What are the maintenance precautions for this non-resorbable equipment?

As a reusable and non-resorbable surgical instrument, the Helmut Zepf chisel-chisel requires a rigorous decontamination and sterilization protocol after each intervention. The recommendations of the manufacturer Helmut Zepf Medizintechnik GmbH regarding manual or ultrasonic cleaning and autoclave sterilization should be followed. Particular attention must be paid to the examination of the 3 mm tip: any sign of chipping, deformation, or corrosion must lead to the immediate withdrawal of the instrument from the clinical circuit. Maintaining sharpness is crucial to avoid excessive bone compression, which could compromise post-operative healing. Storage in a dry and protected environment is imperative to preserve the mechanical properties of the steel.

Who is the manufacturer and what standards are respected?

The device is manufactured by Helmut Zepf Medizintechnik GmbH, a recognized manufacturer in the field of high-precision dental and surgical instrumentation. Although the specific regulatory class and CE marking are not detailed in the simplified technical documentation, the product is designed according to the German industrial quality standards associated with the Helmut Zepf brand. Practitioners are invited to systematically refer to the instructions for use and labeling provided with the product to verify current certifications and specific safety instructions. Traceability is ensured by the catalog reference 41.540.03WM, allowing for the precise identification of the model and its manufacturing characteristics.
